SHEAR CUT PRODUCTS
Knife Holders -- 5 Models

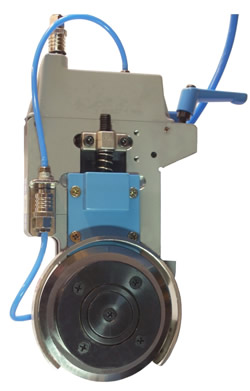

Shear Cut Knife
6410-SC
  The 6410-SC handles a wide range of applications, such as light paper, foil, tapes, film and woven or non-woven fabrics. It is a lower cost option for a less demanding slitting environment.

Minimum Slit Width
1.5 Inches
Maximum Speed
2,000 Feet/Min
Operating Pressure
85 PSI
Blade Diameter
3.5 Inches

CLICK for Blueprint
CLICK for Photo
CLICK for Brochure (full details)
6410-SC Shear Cut Knife Burris Machine Company

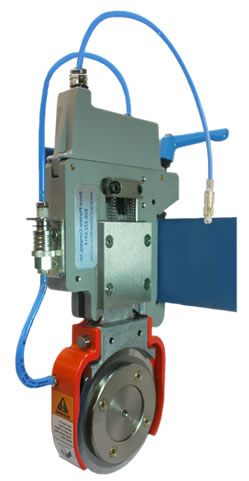

Narrow Shear Cut Knife
6425-SC


The compact, thin design enables cuts as narrow as one inch. The 6425-SC is ideal for light paper, foil, & film.

Minimum Slit Width
1.0 Inches
Maximum Speed
1,300 Feet/Min
Operating Pressure
28-85 PSI
Blade Diameter
3.5 Inches
CLICK for Blueprint
CLICK for Photo
CLICK for Brochure (full details)
Chear Cut Knife 6820-SC

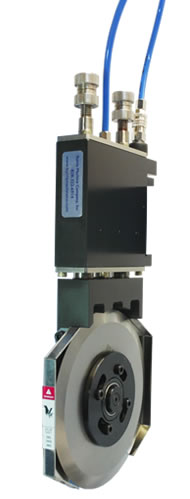

Heavy Duty Score Cut Knife
6510-SC
  This unique heavy duty design offers the benefits of a score cut knife blade that may be utilized on a shear cut slitter system.  Excellent for cutting heavy material, such as corrugated paper, rubber, fiberglass, tapes, foam and multi-layered materials.

Minimum Slit Width
1.2 Inches
Maximum Speed
300 Feet/Min
Operating Pressure
85 PSI
Blade Diameter
5.9 Inches
CLICK for Blueprint
CLICK for Photo
CLICK for Brochure (full details)
Heavy Duty Score cut knife - BUrris Machine Company


Shear Cut Knife
6610-SC
  This is the “heart of the line”.  Its innovative design provides multiple adjustments. Enabling a wide range of uses, and stability at lower speeds for difficult-to-cut items.

Minimum Slit Width
1.5 Inches
Maximum Speed
3200 Feet/Min
Operating Pressure
85 PSI
Blade Diameter
5.9 Inches
CLICK for Blueprint
CLICK for Photo
CLICK for Brochure (full details)
Shear Cut Knife 6610-sc BUrris MAchine Company

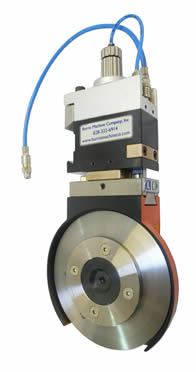

Heavy Duty Shear Cut Knife
6850-SC
  This modular, heavy-duty design provides the benefit of reduced vibration at high speed, producing predictable shear cuts at up to 4,900 feet per minute for a wide variety of uses.  It has unique options for multiple adjustments, including the ability to remove/change the blade-holding part of the cartridge.

Minimum Slit Width
2.0 Inches
Maximum Speed
4,900 Feet/Min
Operating Pressure
42-85 PSI
Blade Diameter
5.9 Inches
CLICK for Blueprint
CLICK for Photo
CLICK for Brochure (full details)
Heavy Duty Shear Cut Knife 6850-sc, BUrris Machine Company
